II. Post-quantum Cryptography: B-1. Lattice-based Cryptography

7 minute read

Published: Updated:

The Beginner's Textbook for Fully Homomorphic Encryption (by Ronny Ko)

This post is based on The Beginner’s Textbook for Fully Homomorphic Encryption by Ronny Ko.
In this post, I provide a summary and review of “II. Post-quantum Cryptography: B-1. Lattice-based Cryptography.”

B-1. Lattice-based Cryptography

What I like about lattice-based cryptography is that it is widely regarded as a promising approach to post-quantum cryptography, offering resistance against quantum attacks.

B-1.1 Overview

0. Key Idea

  • The noise $e$ is small but makes it computationally hard to recover the exact linear relation
  • The scaling factor $\Delta$ ensures that the message $m$ remains distinguishable from the noise

1. LWE Problem (Intuition + Structure)

Suppose we have a plaintext number $m$ to encrypt.
The encryption formula is:

\[b = \mathbf{S} \cdot \mathbf{A} + \Delta m + e\]
  • $\mathbf{S} \in \mathbb{Z}_q^k$: secret vector (fixed across encryptions)
  • $\mathbf{A} \in \mathbb{Z}_q^k$: randomly sampled vector
  • $e \in \mathbb{Z}_q$: small noise
  • $\Delta$: scaling factor used to separate the plaintext $m$ from the noise $e$
  • $q$: modulus defining the ciphertext domain $\mathbb{Z}_q$

1-2. Sampling Process

For each encryption:

  • $\mathbf{A}$ is sampled uniformly from $\mathbb{Z}_q^k$
  • $e$ is sampled from a small noise distribution over $\mathbb{Z}_q$

The secret vector $\mathbf{S}$ remains fixed.

1-3. Multiple Samples

Given multiple ciphertext pairs:

\[(\mathbf{A}^{(1)}, b^{(1)}), \quad (\mathbf{A}^{(2)}, b^{(2)}), \quad (\mathbf{A}^{(3)}, b^{(3)}), \dots\]

For each $(i = 1, 2, 3, \dots)$,

\[b^{(i)} = \mathbf{S} \cdot \mathbf{A}^{(i)} + \Delta m^{(i)} + e^{(i)}.\]

1-4. Security Intuition

Given many samples $(\mathbf{A}^{(i)}, b^{(i)})$,
recovering the secret $\mathbf{S}$ is computationally hard due to the presence of noise $e^{(i)}$.

This hardness forms the foundation of the Learning with Errors (LWE) problem.

  • Search-LWE: Recovering the secret $\mathbf{S}$ is computationally hard

  • Decision-LWE: Given samples $(\mathbf{A}^{(i)}, b^{(i)})$, it is hard to distinguish between:
    • $b^{(i)}$ sampled uniformly at random from $\mathbb{Z}_q$, or
    • $b^{(i)} = \mathbf{S} \cdot \mathbf{A}^{(i)} + e^{(i)}$
  • These two problems are computationally equivalent

2. RLWE Problem (Intuition + Structure)

In RLWE, vectors in LWE are replaced by polynomials over a ring. The key difference is that operations are performed using polynomial multiplication in a ring, rather than vector inner products.

Suppose we have a plaintext polynomial $m(X)$ to encrypt.
The encryption formula is:

\[b(X) = A(X) \cdot S(X) + \Delta m(X) + e(X)\]
  • $S(X) \in \mathbb{Z}_q[X]/(X^n + 1)$: secret polynomial (fixed across encryptions)
  • $A(X) \in \mathbb{Z}_q[X]/(X^n + 1)$: randomly sampled polynomial
  • $e(X) \in \mathbb{Z}_q[X]/(X^n + 1)$: small noise polynomial
  • $\Delta$: scaling factor separating message and noise
  • $q$: modulus defining the ring $\mathbb{Z}_q[X]/(X^n + 1)$

Here, each polynomial has degree at most $n-1$, meaning the secret consists of $n$ coefficients.

2-1. Sampling Process

For each encryption:

  • $A(X)$ is sampled uniformly from $\mathbb{Z}_q[X]/(X^n + 1)$
  • $e(X)$ is sampled from a small noise distribution

The secret polynomial $S(X)$ remains fixed.

2-2. Multiple Samples

Given multiple ciphertext pairs:

\[(A^{(1)}(X), b^{(1)}(X)), \quad (A^{(2)}(X), b^{(2)}(X)), \quad (A^{(3)}(X), b^{(3)}(X)), \dots\]

For each $(i = 1, 2, 3, \dots)$,

\[b^{(i)}(X) = A^{(i)}(X) \cdot S(X) + \Delta m^{(i)}(X) + e^{(i)}(X).\]

2-3. Security Intuition

Given many samples $(A^{(i)}(X), b^{(i)}(X))$,
recovering the secret polynomial $S(X)$ is computationally hard.

  • Search-RLWE: In particular, this corresponds to finding the $n$ unknown coefficients of $S(X)$.

  • Decision-RLWE: It is hard to distinguish between:

    • $b^{(i)}(X)$ sampled uniformly at random, or
    • $b^{(i)}(X) = A^{(i)}(X) \cdot S(X) + e^{(i)}(X)$

RLWE preserves the hardness of LWE while enabling more efficient computation through algebraic structure.

B-1.2 LWE Cryptosystem

0. Key Idea

  • The message is scaled by $\Delta$ to separate it from noise
  • The noise occupies the lower bits, while the message stays in the higher bits

1. Encryption Structure

The LWE cryptosystem encrypts a message $M^{(i)}$ as:

\[\mathbf{B^{(i)}} = \mathbf{S} \cdot \mathbf{A^{(i)}} + \Delta \cdot \mathbf{M^{(i)}} + \mathbf{E^{(i)}}\]
  • $\mathbf{S}$: secret key (unknown to attacker)
  • $\mathbf{A}$: public key (random vector)
  • $\mathbf{M}$: plaintext
  • $\mathbf{E}$: small noise sampled from a distribution
  • $\mathbf{B}$: ciphertext
  • $\Delta$: scaling factor of the plaintext $\mathbf{M}$

2. Why Scaling is Needed

Before encryption, the message is scaled:

\[\Delta M^{(i)}\]

This corresponds to shifting the message by $\log_2 \Delta$ bits to the left.

  • This creates space for noise in the lower bits
  • Without scaling, noise would corrupt the message

3. Intuition (Bit-Level View)

  • $\Delta M^{(i)}$ → occupies higher bits
  • $E^{(i)}$ → occupies lower bits

So we get:

\[\Delta M^{(i)} + E^{(i)}\]
  • message remains stable
  • noise stays small relative to $\Delta M^{(i)}$

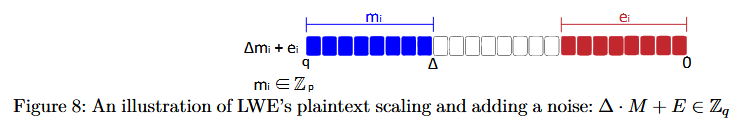

LWE scaling and noise illustration

4. Encryption

The encryption is defined as:

\[B^{(i)} = S \cdot A^{(i)} + \Delta \cdot M^{(i)} + E^{(i)}\]
  • $A^{(i)}$: publicly known random vector
  • $B^{(i)}$: ciphertext
  • $S$: secret key
  • $M^{(i)}$: plaintext
  • $E^{(i)}$: noise

Here, $A^{(i)}$ and $B^{(i)}$ are public, while $S$, $M^{(i)}$, and $E^{(i)}$ are unknown.

5. Decryption

To recover the message:

\[\frac{\left\lfloor B^{(i)} - \langle S, A^{(i)} \rangle \right\rceil_{\Delta}}{\Delta} = \frac{\left\lfloor \Delta M^{(i)} + E^{(i)} \right\rceil_{\Delta}}{\Delta} = M^{(i)}, \quad \text{provided that } E^{(i)} < \frac{\Delta}{2}\]

Here, $\left\lfloor \cdot \right\rceil_{\Delta}$ denotes rounding to the nearest multiple of $\Delta$.

For example:

  • $\left\lfloor 16 \right\rceil_{10} = 20$
  • $\left\lfloor 17 \right\rceil_{8} = 16$

This means that the value is rounded to the closest multiple of $\Delta$.

6. Correctness

To analyze correctness, we start from the decryption step:

\[B^{(i)} - S \cdot A^{(i)} = \Delta M^{(i)} + E^{(i)}\]

This shows that the decrypted value consists of the scaled message plus noise.

Next, we apply rounding:

\[\left\lfloor \Delta M^{(i)} + E^{(i)} \right\rceil_{\Delta}\]

If the noise satisfies:

\[E^{(i)} < \frac{\Delta}{2}\]

then the rounding removes the noise:

\[\left\lfloor \Delta M^{(i)} + E^{(i)}\right\rceil_{\Delta} = \Delta M^{(i)}\]

Finally, dividing by $\Delta$ gives:

\[\frac{\Delta M^{(i)}}{\Delta} = M^{(i)}\]

7. Security

To understand security, consider that an attacker observes many samples:

\[(A^{(i)}, B^{(i)})\]

where:

\[B^{(i)} = S \cdot A^{(i)} + \Delta M^{(i)} + E^{(i)}\]

1) Even with many such samples, recovering the secret key $S$ is computationally hard.

This is because each equation contains a different noise term $E^{(i)}$,
which prevents the system from forming exact linear equations.

2) Even if the same plaintext $M^{(i)}$ is encrypted multiple times:

\[(A^{(1)}, B^{(1)}), \quad (A^{(2)}, B^{(2)}), \quad \dots\]

(each ciphertext is generated independently from the same plaintext, using fresh randomness)

each encryption uses different randomness and noise:

  • $A^{(j)}$ is randomly sampled
  • $E^{(j)}$ is independently sampled

As a result, the attacker cannot combine these samples to eliminate the noise,
making it difficult to recover the original message.

3) Furthermore, both $A$ and $S$ are high-dimensional vectors. This increases the randomness (entropy) of the system and further strengthens security.

8. Conclusion

Lattice-based cryptography hides a plaintext by combining two key components:

  • a linear term $S \cdot A$
  • a small random noise $E$

1) During encryption, the message is scaled by $\Delta$ and embedded as:

\[S \cdot A + \Delta M + E\]

2) During decryption:

  • The secret key $S$ is used to reconstruct $S \cdot A$ and remove it
  • The noise $E$ is eliminated through rounding
  • The remaining $\Delta M$ is scaled down to recover $M$

3) This design ensures that:

  • The noise hides the underlying structure from attackers
  • The rounding process removes the noise for correct decryption
  • The scaling factor $\Delta$ separates the message from noise

Thus, lattice-based cryptography achieves both security and correctness through the interplay of noise and scaling.

B-1.3 RLWE Cryptosystem

0. Key Idea

  • RLWE extends LWE by replacing vectors with polynomials over a ring.
  • This structured representation enables more efficient computation while preserving the hardness of the LWE problem.

1. Encryption Structure

The encryption formula is:

\[B^{(i)}(X) = A^{(i)}(X) \cdot S(X) + \Delta M^{(i)}(X) + E^{(i)}(X)\]
  • $S(X)$: secret polynomial
  • $A^{(i)}(X)$: randomly sampled polynomial
  • $M^{(i)}(X)$: plaintext polynomial
  • $E^{(i)}(X)$: noise polynomial
  • $B^{(i)}(X)$: ciphertext

All operations are performed over:

\[\mathbb{Z}_q[X] / (X^n + 1)\]

2. Key Difference from LWE

  • Vector inner product → Polynomial multiplication
  • $\mathbb{Z}_q^k$ → $\mathbb{Z}_q[X]/(X^n + 1)$
  • Secret becomes $n$ coefficients instead of a vector

3. Summary

RLWE preserves the hardness of LWE while improving efficiency
by operating over polynomial rings instead of vectors.
